원래 장소: | 산둥 성, 중국 (본토) |
브랜드 이름: | Z&H |
모델 번호: | 22334MB/W33 |
최소 주문 수량: | 1개 부분 |
---|---|
가격: | USD =-1-10 piece |
포장 세부 사항: | 당신의 요구로서의 전통적 패키지 / |
지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 |
공급 능력: | 5000이지 부분 일 |
특징: | 고급 품질 / 장수 | 재료: | cr 강 / GCR 15 |
---|---|---|---|
정확성 평가: | P0 P6 P5 P4 P2 | 적용 가능합니다: | 생산 공장, 기계장치 수선소, 건축 |
밀봉 타입: | MB CA CC | 원산지 :: | ShangDong 중국 |
새장: | 놋쇠로 만든 새장과 강철 유리 | 서비스: | OEM |
패키지: | 오리지널 패키지 | 주유: | 기름 또는 윤활제 |
검사: | 100% | ||
하이 라이트: | C4 Spherical Roller Bearing,22334 CA/W33 Spherical Roller Bearing,Oil Lubriexcavatorion Spherical Roller Bearing |

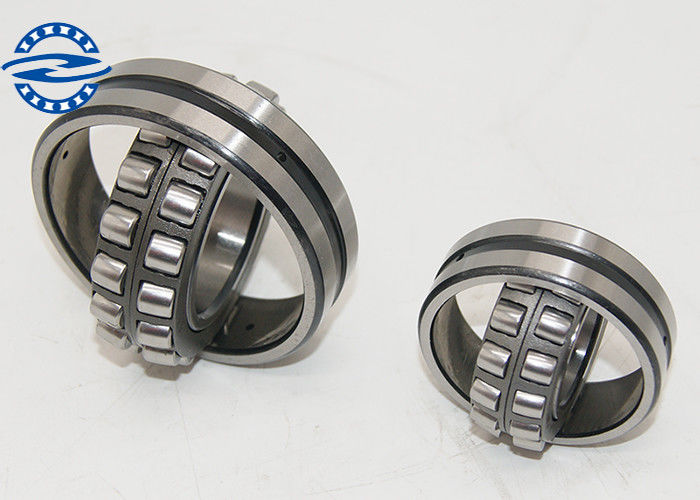

22334 MB/W33 22334CC/W33 22334CA/W33 Spherical Roller Bearing 100% Inspection
Product Description
Spherical roller bearings have double-row rollers, the outer ring has a common spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis. This ingenious structure makes it have self-aligning performance, so it is not easy to be affected by the angle of the shaft and the bearing housing on the error or shaft bending. It is suitable for installation errors or shaft deflection caused by angle errors. In addition to being able to withstand radial loads, the bearing can also withstand bidirectional axial loads.
New | Old | d | D | B | Cr | Cor | Grease | Oil | wt | da(min) | Da(max) | ra(max) |
24020CA | 4053120 H | 100 | 150 | 50 | 242 | 425 | 1500 | 2000 | 3.15 | 109 | 141 | 1.5 |
23120CA | 3053720 H | 100 | 165 | 52 | 326 | 490 | 1700 | 2200 | 4.39 | 111 | 154 | 2 |
23120MB | 100 | 165 | 52 | 326 | 490 | 1700 | 2200 | 4.39 | 111 | 154 | 2 | |
23120M | 100 | 165 | 52 | 379 | 575 | 1700 | 2200 | 4.37 | 111 | 154 | 2 | |
22220CA | 53520 H | 100 | 180 | 46 | 317 | 423 | 2200 | 3000 | 5.1 | 112 | 168 | 2.1 |
22220C | 53520 | 100 | 180 | 46 | 317 | 423 | 2200 | 3000 | 5.1 | 112 | 168 | 2.1 |
22220MB | 100 | 180 | 46 | 317 | 423 | 2200 | 3000 | 5.1 | 112 | 168 | 2.1 | |
22220M | 100 | 180 | 46 | 373 | 484 | 2200 | 3000 | 5.04 | 112 | 168 | 2.1 | |
23220CA | 3053220 H | 100 | 180 | 60.3 | 405 | 589 | 1500 | 1900 | 6.81 | 112 | 168 | 2.1 |
23220MB | 100 | 180 | 60.3 | 405 | 589 | 1500 | 1900 | 6.81 | 112 | 168 | 2.1 | |
22320CA | 53620 H | 100 | 215 | 73 | 613 | 799 | 1600 | 2200 | 13.3 | 114 | 201 | 3 |
22320C | 53620 | 100 | 215 | 73 | 613 | 799 | 1600 | 2200 | 13.3 | 114 | 201 | 3 |
22320MB | 100 | 215 | 73 | 613 | 799 | 1600 | 2200 | 13.3 | 114 | 201 | 3 | |
22320M | 100 | 215 | 73 | 653 | 824 | 1600 | 2200 | 13.2 | 114 | 201 | 3 | |
23022CA | 3053122 H | 110 | 170 | 45 | 304 | 489 | 1900 | 2500 | 3.79 | 120 | 160 | 2 |
23022C | 3053122 | 110 | 170 | 45 | 304 | 489 | 1900 | 2500 | 3.79 | 120 | 160 | 2 |
23022MB | 110 | 170 | 45 | 304 | 489 | 1900 | 2500 | 3.79 | 120 | 160 | 2 | |
23022M | 110 | 170 | 45 | 329 | 505 | 1900 | 2500 | 3.77 | 120 | 160 | 2 | |
24022CA | 4053122 H | 110 | 170 | 60 | 294 | 506 | 1300 | 1800 | 5.04 | 120 | 160 | 2 |
23122CA | 3053722 H | 110 | 180 | 56 | 382 | 596 | 1500 | 2000 | 5.72 | 121 | 169 | 2 |
23122MB | 110 | 180 | 56 | 382 | 596 | 1500 | 2000 | 5.72 | 121 | 169 | 2 | |
23122M | 110 | 180 | 56 | 433 | 654 | 1500 | 2000 | 5.7 | 121 | 169 | 2 | |
24122CA | 4053722 H | 110 | 180 | 69 | 462 | 758 | 1200 | 1500 | 7.15 | 121 | 169 | 2 |
22222CA | 53522 H | 110 | 200 | 53 | 414 | 574 | 2000 | 2700 | 7.69 | 123 | 187 | 2.1 |
22222C | 53522 | 110 | 200 | 53 | 414 | 574 | 2000 | 2700 | 7.69 | 123 | 187 | 2.1 |
22222MB | 110 | 200 | 53 | 414 | 574 | 2000 | 2700 | 7.69 | 123 | 187 | 2.1 | |
22222M | 110 | 200 | 53 | 475 | 627 | 2000 | 2700 | 7.63 | 123 | 187 | 2.1 | |
23222CA | 3053222 H | 110 | 200 | 69.8 | 528 | 786 | 1300 | 1800 | 9.79 | 123 | 187 | 2.1 |
23222MB | 110 | 200 | 69.8 | 528 | 786 | 1300 | 1800 | 9.79 | 123 | 187 | 2.1 | |
23222M | 110 | 200 | 69.8 | 597 | 853 | 1300 | 1800 | 9.76 | 123 | 187 | 2.1 | |
22322CA | 53622 H | 110 | 240 | 80 | 724 | 915 | 1500 | 2000 | 18.3 | 125 | 225 | 3 |
22322MB | 110 | 240 | 80 | 724 | 915 | 1500 | 2000 | 18.3 | 125 | 225 | 3 | |
22322M | 110 | 240 | 80 | 771 | 951 | 1500 | 2000 | 18.1 | 125 | 225 | 3 | |
23024CA | 3053124 H | 120 | 180 | 46 | 317 | 514 | 1700 | 2300 | 4.1 | 131 | 169 | 2 |
23024MB | 120 | 180 | 46 | 317 | 514 | 1700 | 2300 | 4.1 | 131 | 169 | 2 | |
23024M | 120 | 180 | 46 | 353 | 564 | 1700 | 2300 | 4.07 | 131 | 169 | 2 | |
24024CA | 4053124 H | 120 | 180 | 60 | 386 | 673 | 1200 | 1700 | 5.4 | 131 | 169 | 2 |
